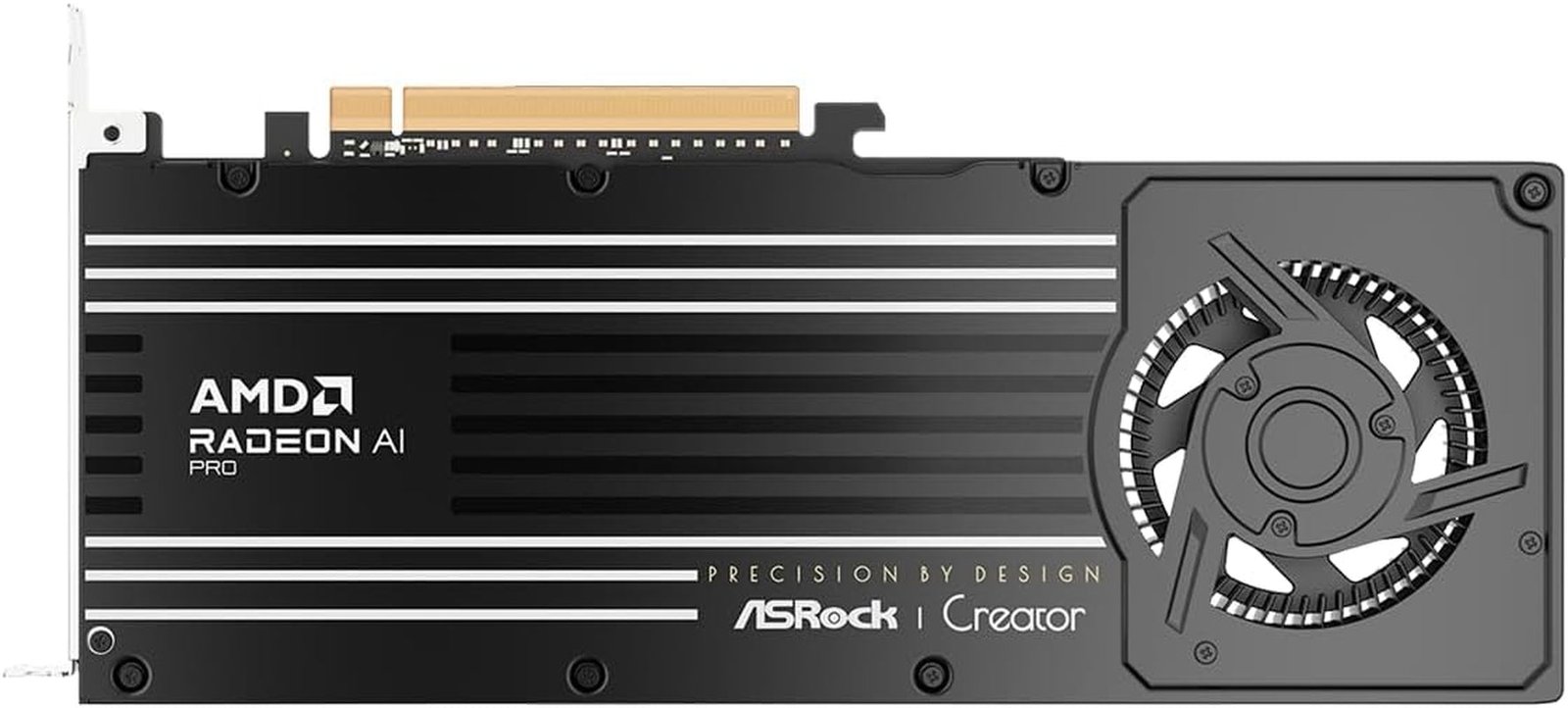

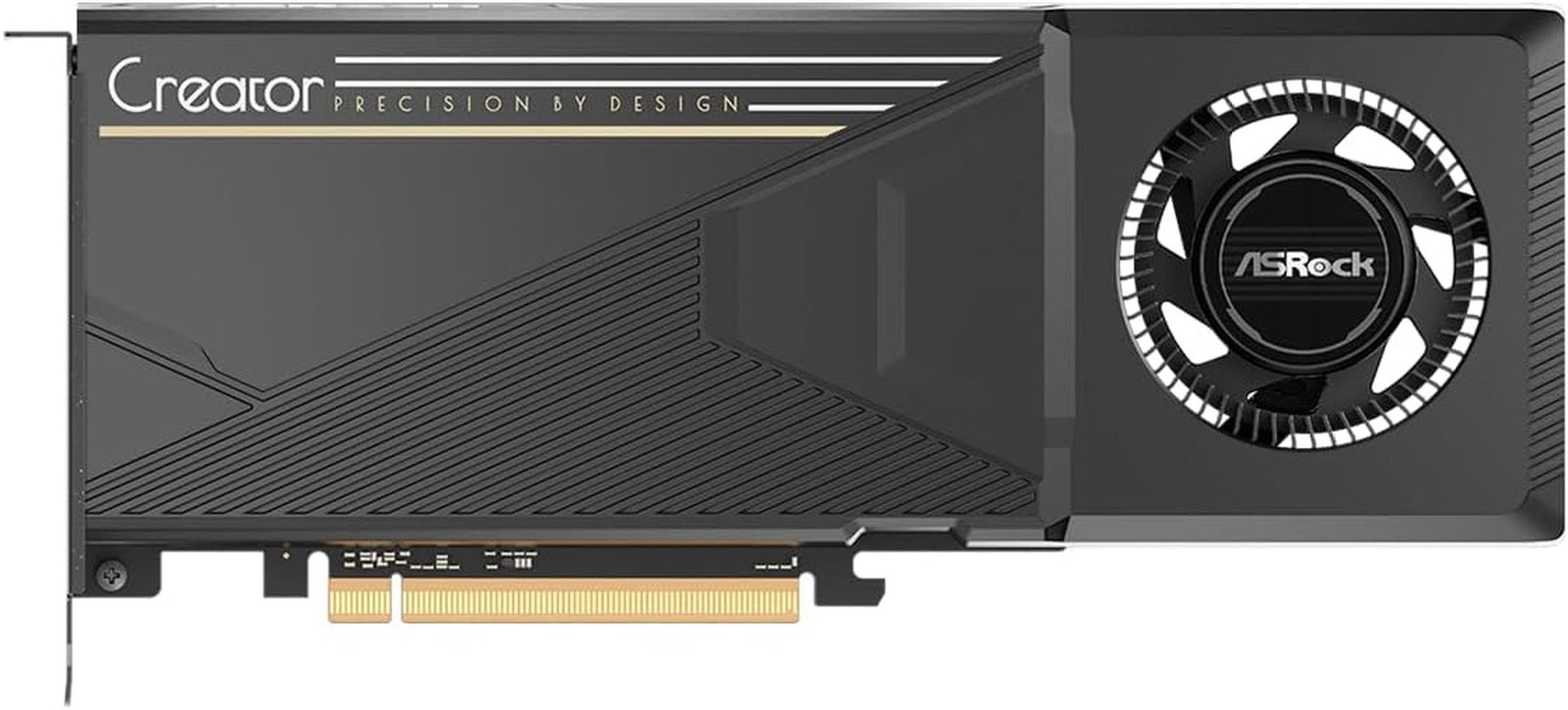

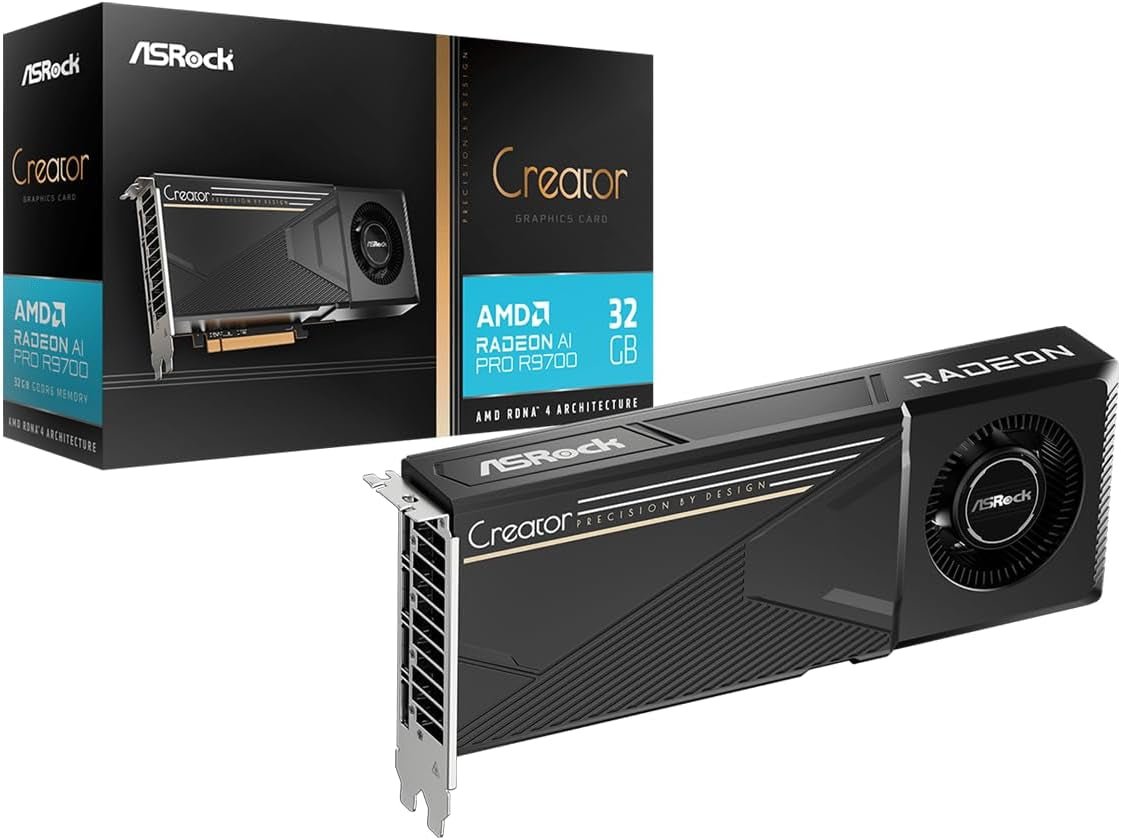

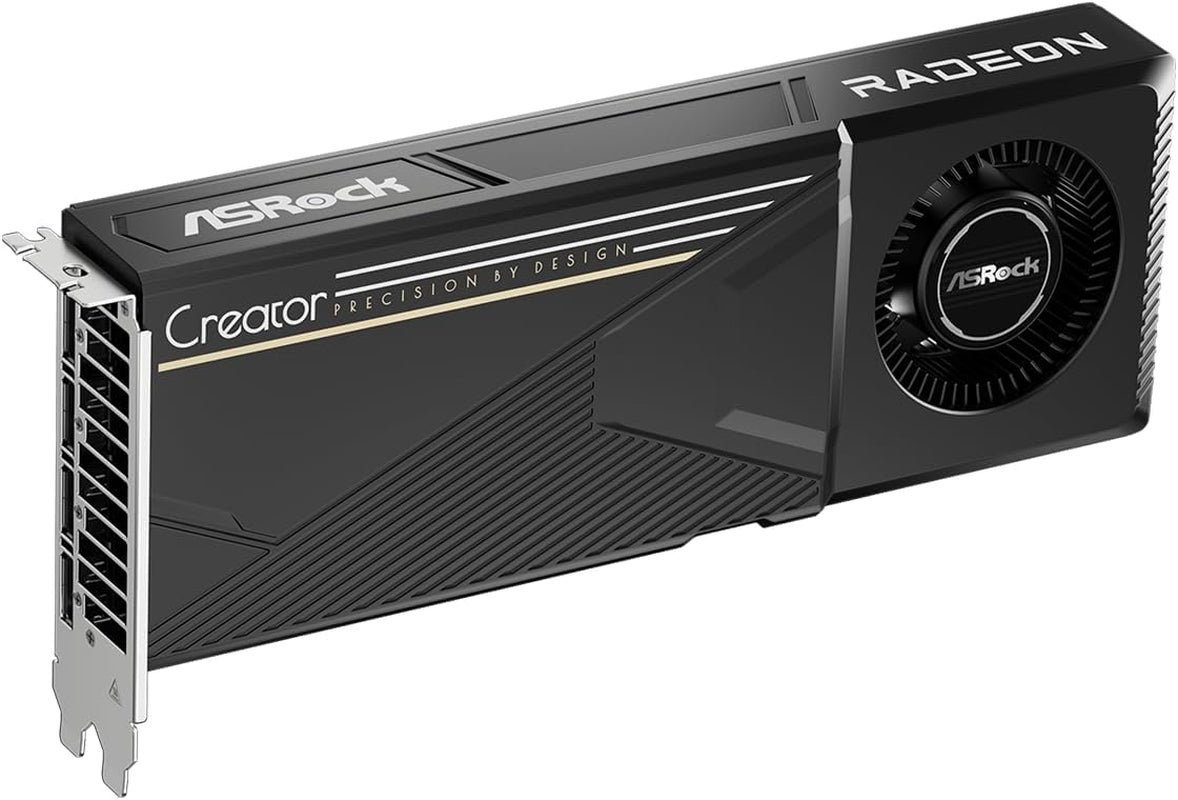

The ASRock Radeon AI PRO R9700 Creator 32GB is a new ASRock graphics card built on the AMD Radeon AI PRO R9700, with 32 GB GDDR6 of dedicated video memory. It is aimed at professional workstations: CAD and design, rendering, visualization and running AI models locally, where memory size and driver support matter more than gaming features.
About this card
ASRock Creator cards are professional boards with a blower-style cooler for workstations. The Radeon AI PRO R9700 is built on AMD RDNA 4 with 32 GB of memory, enough to keep larger local AI models and big scenes on the card. AMD supports it with Radeon PRO drivers and with ROCm for AI frameworks on supported operating systems.
Check before you order
- Size: 271 x 112 x 39 mm. Compare the length with the maximum GPU length your case allows, leaving room for front fans or a radiator.
- Slot width: 2-Slot. The card covers the slots below its own, so check that it will not block a card or M.2 heatsink you need.
- Power connectors: 1 x 12V-2×6. Make sure your power supply has the right cables, or use the adapter supplied with the card.
- Power supply: 750W or more is recommended for a typical system with this card.
- Motherboard slot: PCI Express 5.0 x16. The card also works in older PCIe x16 slots, at slightly lower bandwidth.
- Display outputs: 4 x DisplayPort 2.1a. Plan your monitor cables around these ports.
Any value not listed here is on ASRock’s product page for part number 90-GA5XZZ-00UANF. Not sure it fits? Email us your case, motherboard and power supply and we will check for you.
Specifications
| Brand | ASRock |
|---|---|
| Part number | 90-GA5XZZ-00UANF |
| GPU | AMD Radeon AI PRO R9700 |
| Video memory | 32 GB GDDR6 |
| Memory bus | 256-bit |
| Memory speed | 20 Gbps |
| Bus interface | PCI Express 5.0 x16 |
| Display outputs | 4 x DisplayPort 2.1a |
| Cooling | Single blower fan |
| Dimensions | 271 x 112 x 39 mm |
| Slot width | 2-Slot |
| Power connectors | 1 x 12V-2×6 |
| Recommended PSU | 750W |
| Condition | New |
Warranty and support
This card is covered by the ASRock manufacturer warranty, on the terms ASRock sets. Keep your Ouredja order confirmation as proof of purchase. If the card is faulty within 30 days of delivery, we replace or refund it ourselves. Details are on our Warranty & Support page.
Real-world speed depends on your game or app, drivers, settings and the rest of your PC. This listing is for the graphics card only. A computer, monitor, cables not supplied by the manufacturer and software licenses are not included.
